Slipform Curb Machine

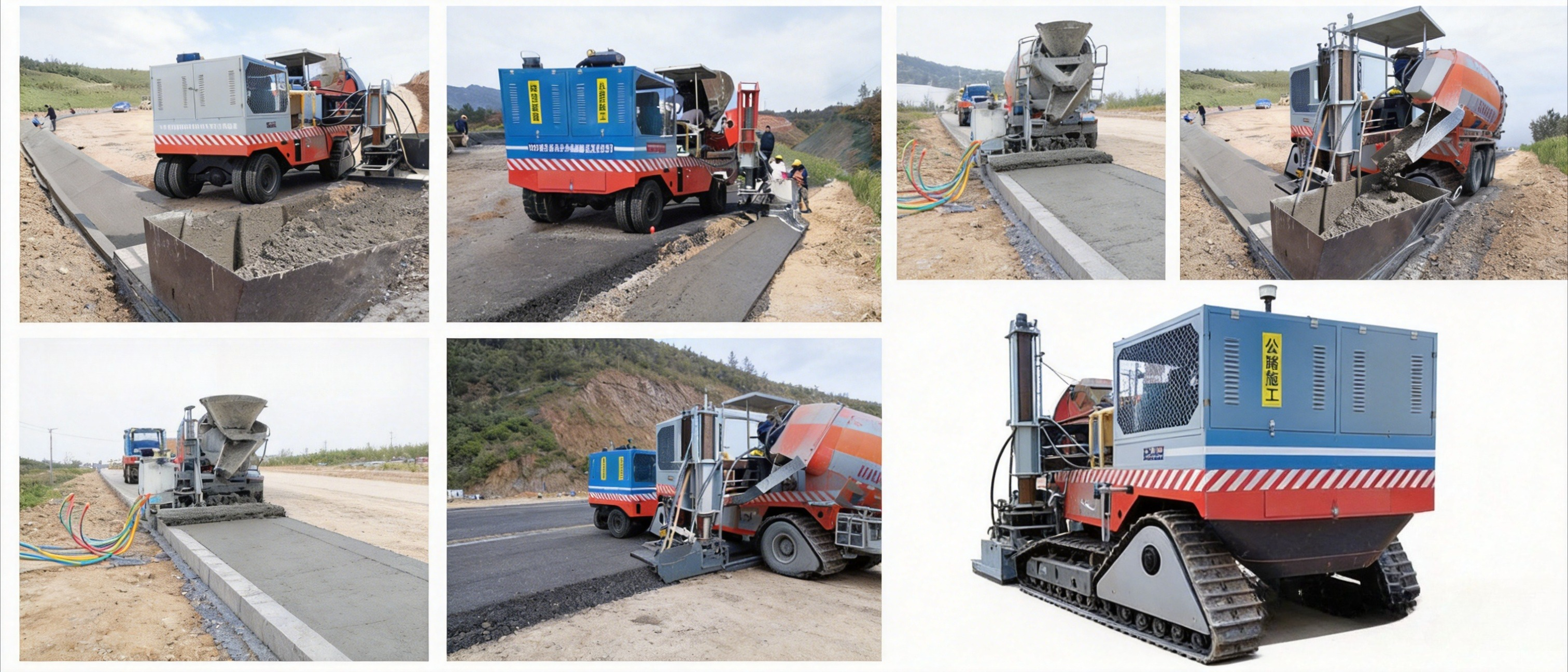

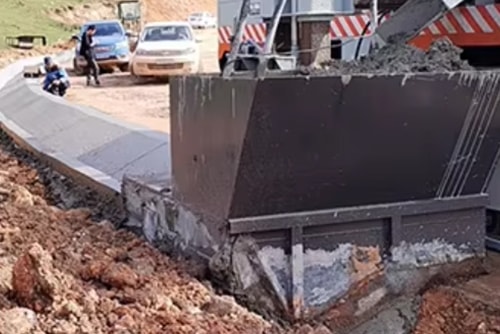

The slipform paving machine is a high-efficiency construction device that uses slipform paving technology to continuously pour concrete on-site to form curb stones. Equipped with a hydraulic system and crawler walking mechanism, it can adapt to complex working conditions such as slopes. This model is widely used for curb stones and drainage ditches on highways and municipal roads, and can also be used for cast-in-place construction of ancillary structures such as median strips, parking lot boundaries, and park landscape paths.

Hopper Volume: 1m³
Paving Speed: 1-10m/min
Width: ≤2000mm
Minimum Turning Radius: 6800mm
Engine: 65kw

Inquiry Now Contact Us

Product Features

1. One‑pass forming for high efficiency: Slipform paving enables continuous on‑site concrete placement. One time molding. Greatly reducing construction time.

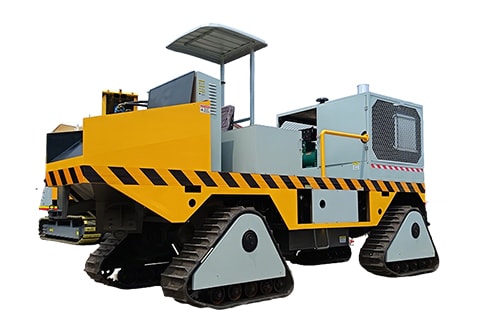

2. Stable with four‑track chassis: Equipped with a four‑track undercarriage and a fully hydraulic drive system, Slipform curb machine offers strong and smooth travel.

3. Flexible and Easy to Operate: The forming width and height can be quickly adjusted to suit different designs. Operators can master the machine with minimal training.

4. Ideal for various applications: It can also cast drainage gutters, safety barriers, water bars, medians, parking lot edges.

Get a Free Quote

Details Explained

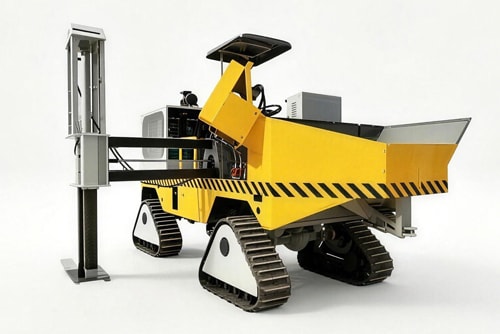

Four-track chassis: The whole machine has super strong grip and excellent flatness of the sliding mold!

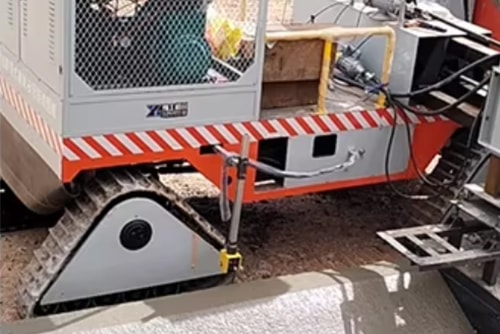

Dual auto steering system: It can reduce the position deviation of the sliding mold at the bend by more than 95%, thus ensuring the road width!

Anti-slip self-locking function: During the construction process, no matter uphill or downhill, there is no need to brake! The machine automatically maintains the set travel speed and "never slips"!

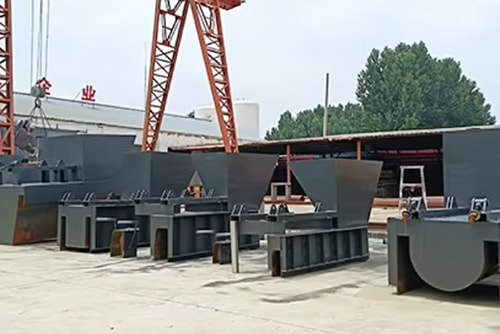

Customized molds: Molds can be customized in size and shape, enabling multi-mold construction with a single machine and saving costs.

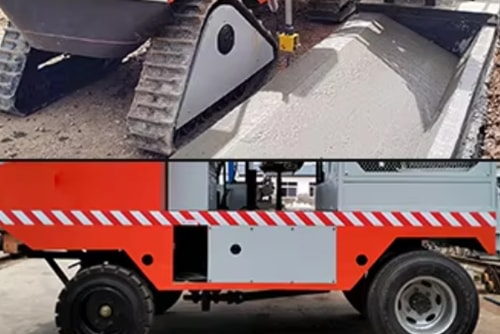

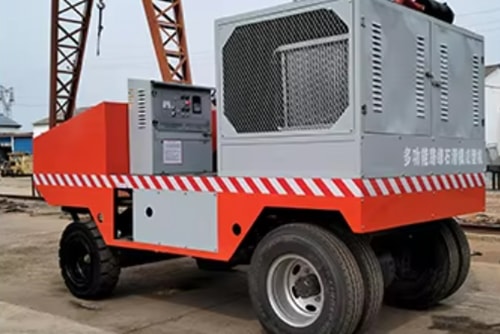

Tracks and tires interchangeable: Convenient for short-distance transitions and adaptable to different working conditions!

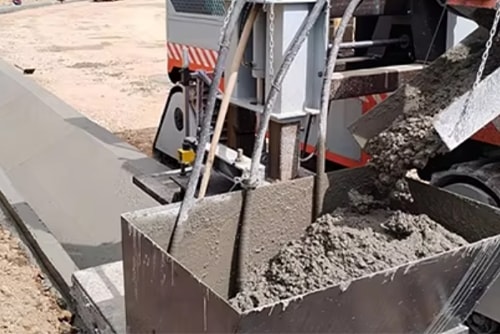

Extra-large hopper: Enlarged capacity manganese steel hopper, wear-resistant and corrosion-resistant, suitable for various types of mixed materials.

Parameters

	YG-KB20	YG-KB30

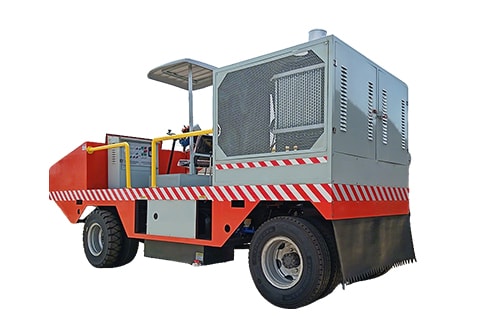

Type	Wheel Type	Crawler Type
Hopper Volume	1m³	1m³
Paving speed	1—7m/min	5—10m/min
Height	Height≤600mm	Height≤1100mm
Width	width≤2000mm	width≤2000mm
Minimum turning radius	6800mm	6800mm
Engine	65kw	65kw
