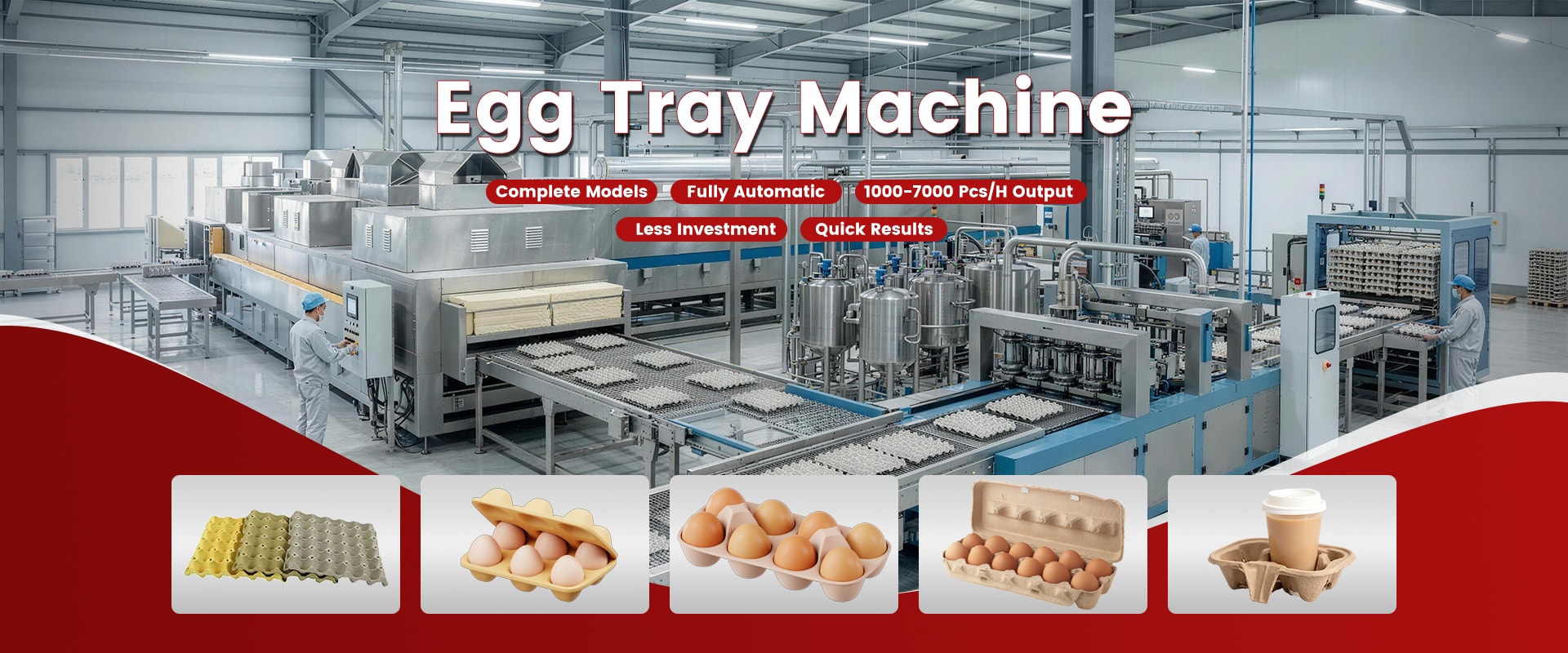

Automatic pulp egg tray machine recycles waste paper to produce eco-friendly paper trays. It boasts high speed up to 7000pcs/h, fast mold switching and low operating costs for quick investment payback. Energy-saving and pollution-free, the machine supports customized molds for diverse products.It is widely used in egg farms, packaging factories and fruit processing plants to manufacture egg trays, egg cartons and fruit buffer packaging.
1. High-efficiency: High-speed egg tray machine reaches output up to 7000pcs/h with stable high automation.
2. Eco-friendly: Uses waste paper as raw material, energy-saving and pollution-free pulp tray production.
3. Customizable: Four-side design supports quick mold changes to make various shapes of paper egg trays.
4. Cost-effective: Low raw material cost brings fast capital return with factory direct sales price.
5. Reliable Supply: China egg tray machine factory provides ready-to-ship automatic egg tray machinery.
Details Explained

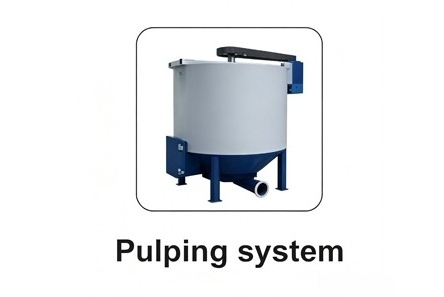

The pulping system processes waste paper through crushing, stirring and concentration adjustment with pulpers, homogenizers, slurry pumps and other devices to make qualified pulp for molding.

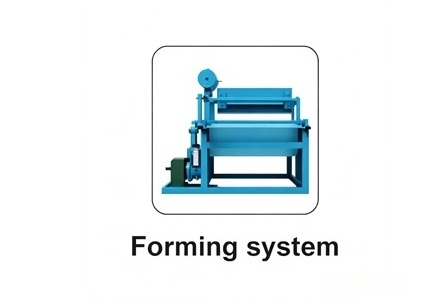

The forming system uses molding machines, vacuum pumps, air compressors to vacuum adsorb pulp onto molds for shaping, then relies on air pressure to demold finished pulp trays.

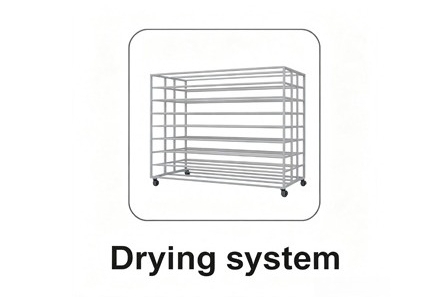

The drying system includes natural air drying and energy-saving multi-layer metal drying lines with various optional heat sources for dehydrating formed pulp trays.

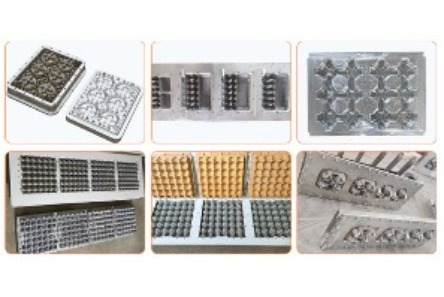

The same equipment can be used to produce a variety of paper‑molded products simply by replacing different molds, greatly expanding your product range.
Parameters
Model | YG-1*3/1*4 | YG-3*4/4*4 | YG-4*8/5*8 | YG-5*12/6*8 |
Capacity(Pcs/h) | 1000-1500 | 2500-3000 | 4000-6000 | 6000-7000 |
Tray Quantity Once | 3-4 | 12-16 | 32-40 | 48-60 |
Waste Paper(kg/h) | 80-120 | 160-240 | 320-400 | 480-560 |
Water(kg/h) | 160-240 | 320-480 | 600-750 | 900-1050 |
Electricity Consumption(kw/h) | 28 | 35-42 | Total power*70% | |
Drying Area | No need | 216 | 216-238 | 260-300 |
Why Choose Us

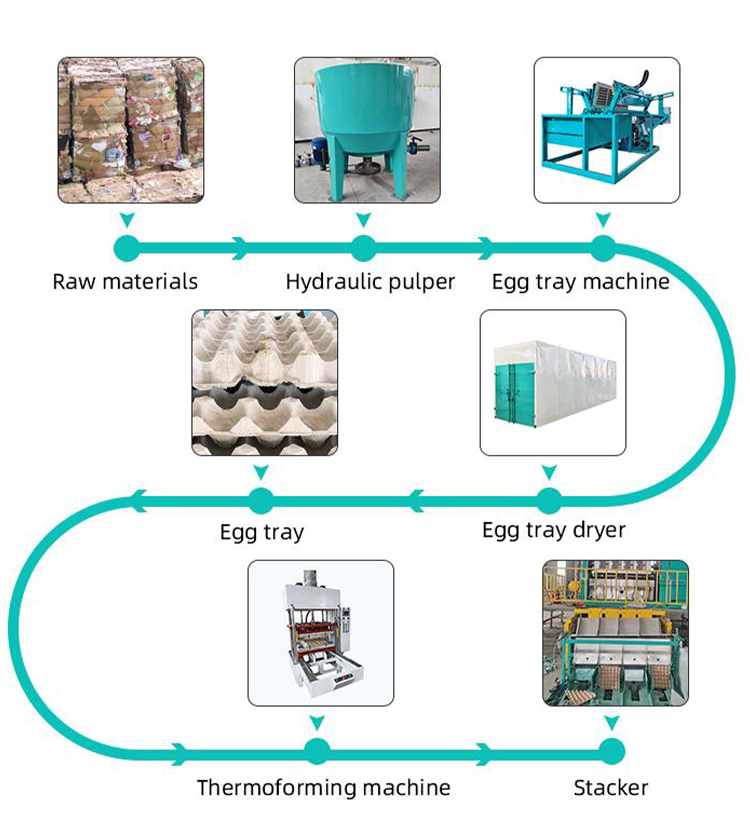

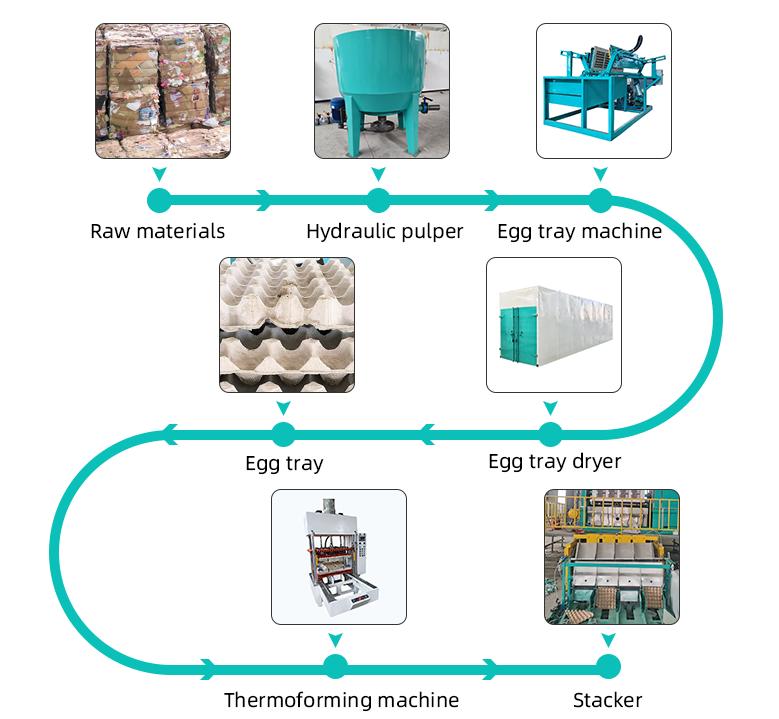

Production Process
