Concrete Pumping Machine

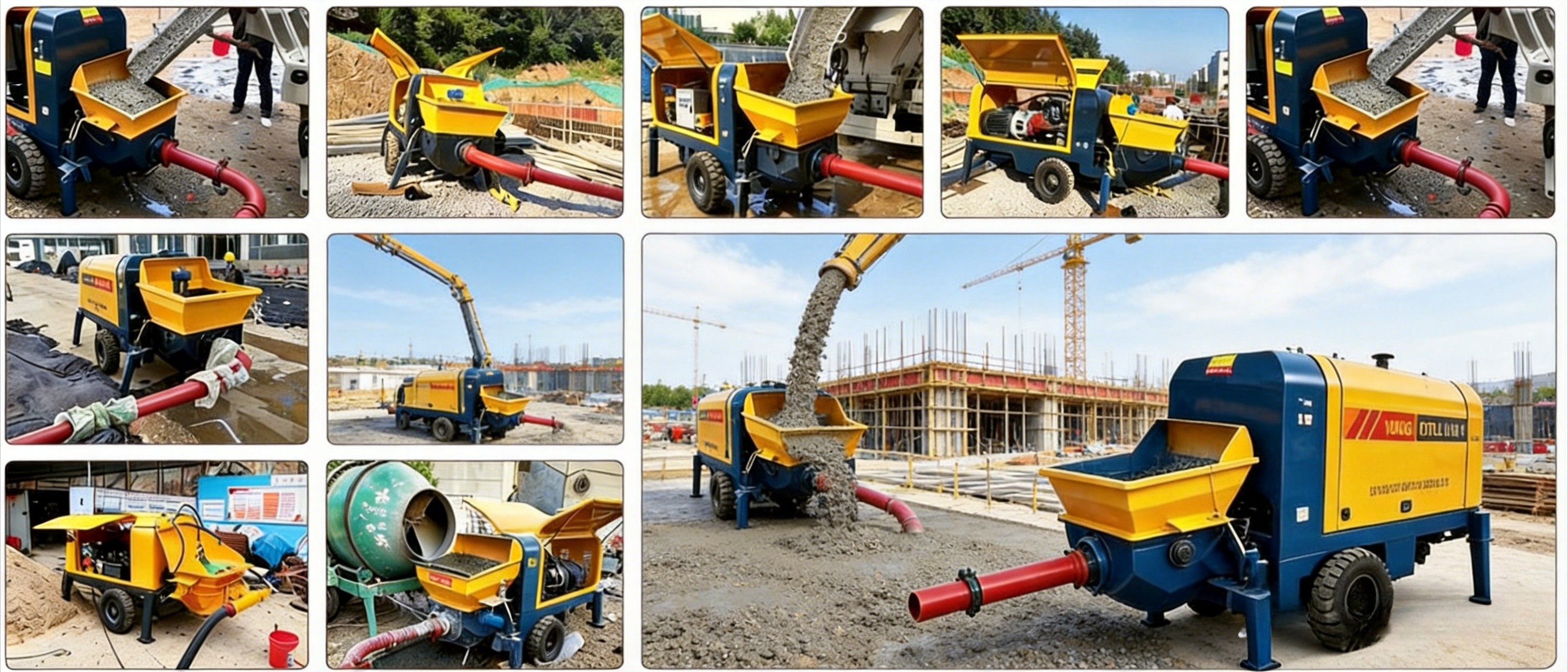

The concrete pumping machine realizes fast, long-distance vertical and horizontal transportation of concrete for construction works. Supported by stable hydraulic drive system, this equipment delivers steady pumping performance, strong pressure resistance and outstanding durability. Easy to operate with wired/wireless remote control, it significantly improves pouring efficiency and reduces labor input. Wear-resistant core parts extend service life and lower maintenance costs. Suitable for high-rise buildings, tunnels, bridge construction and various infrastructure projects, it provides efficient and economical concrete conveying solutions for all construction industries.

Maximum flow: 55-60m³/H
Vertical conveying distance: 30-150m
Horizontal conveying distance: 50-500m
Aggregae size: ≤40mm
Delivery pipe diameter: φ125(100)mm

Inquiry Now Contact Us

Product Features

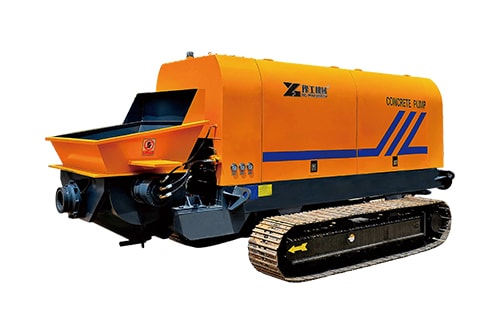

1. Multiple Power Options: Diesel & electric pumps available, trailer, truck and crawler models fit all construction sites.

2. Powerful Delivery: Max horizontal reach 500m & vertical reach 150m with high pressure for long-distance pumping.

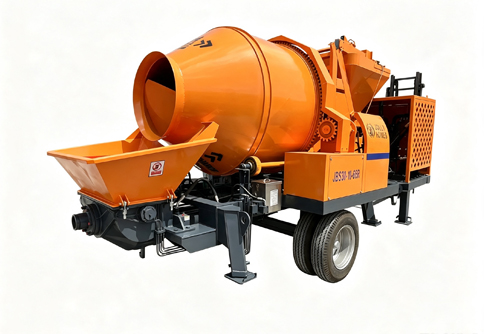

3. High Integration: All-in-one mixer pump with auto feeding system, cutting labor cost and boosting working efficiency.

4. Wide Application: Handles aggregate ≤40mm, easy to operate for residential, road and complex engineering projects.

5. Reliable Purchase: Factory direct supply with customization & global shipping, fast quotation and full after-sales service.

Get a Free Quote

Details Explained

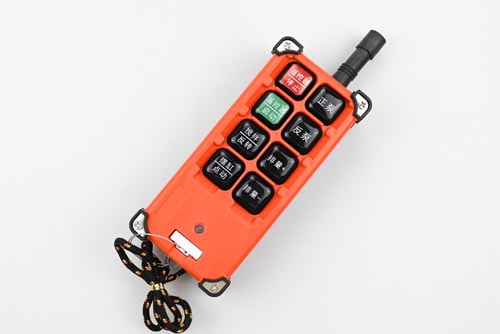

Remote Control: Allowing workers to operate the concrete pump from a distance and ensuring construction safety.

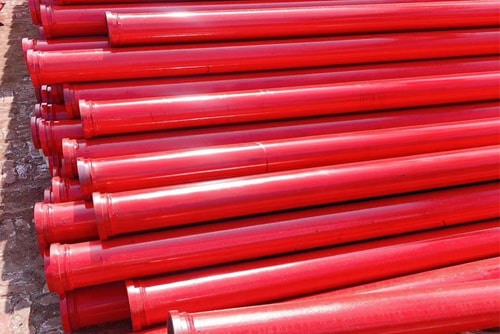

Iron pipe: It is suitable for long-distance transportation and meet the needs of different distances.

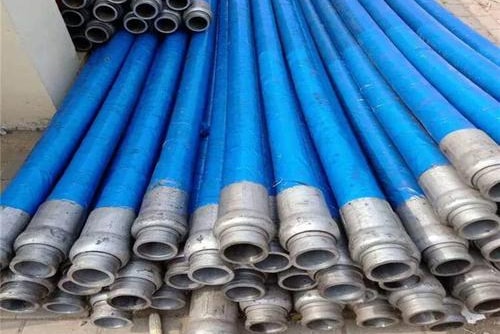

Flexible hose: Flexible hoses are convenient for turning arrangements in narrow construction areas.

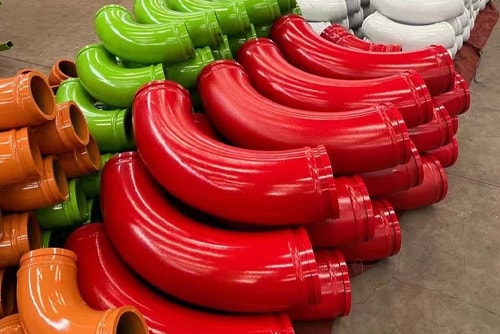

90-degree elbow: It enables pipe routing and accommodates complex construction layouts.

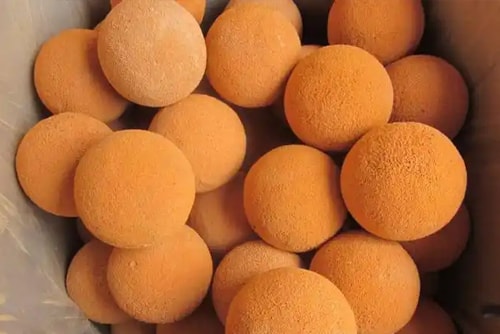

Cleaning ball: It helps quickly remove residual concrete from pipelines, thereby extending their service life.

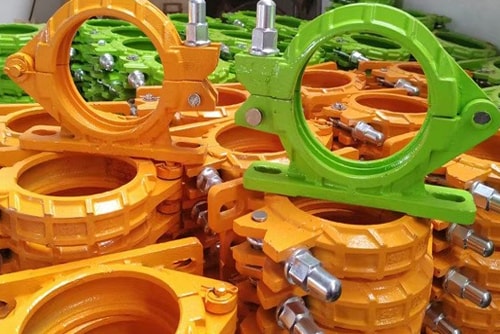

Steel pipe clamp: It can firmly fix the iron pipe and hose, preventing displacement of the pipeline during pumping.

Parameters

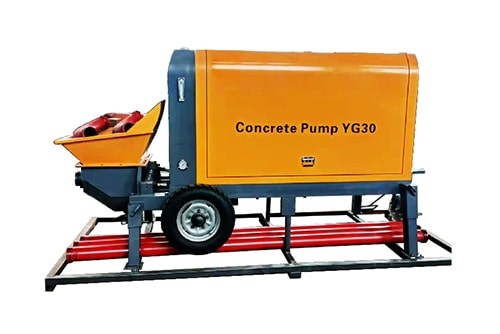

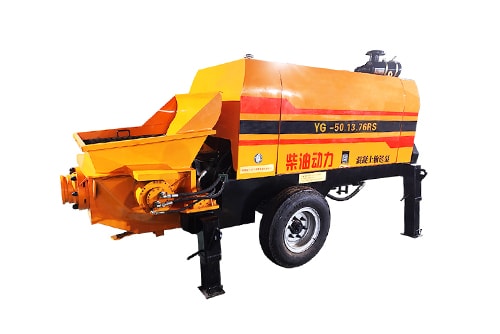

Technical Parameters	YG-20	YG-30	YG-40	YG-50
Max Theoretical Throughput	12m³/h	15-18m³/h	20-22m³/h	35m³/h
Aggregae Size	5-20mm	≤20mm	≤30mm	≤40mm
Vertical Conveying Distance	40m	80m	120m	150m
Horizontal Conveying Distance	80m	160m	260m	300m
Delivery Pipe diameter	80mm	φ100(80)mm	φ100(80)mm	φ125(100)mm
